Digital Advanced Panel Meters
Product Features
- 40 segment bar graph display
- Large 4 digit display
- Dynamic coloured backlight
- User adjustable brightness and colour
- High contrast, anti-glare LCD screen
- Wide viewing angle
- Custom annunciators
- Positive or negative display options
- Optional two independent outputs
- IP65 supplied complete with gasket

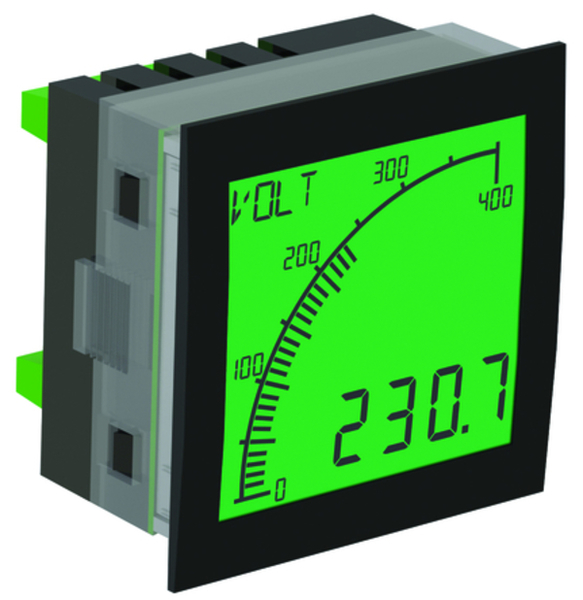

The APM meters incorporate a 40 segment analogue display together with a 4 digit digital display providing both an accurate reading combined with a simple, visual indication. These panel mounting meters have a user selectable red, green or white LED backlight and are 12-24Vac/dc powered. They can be connected to the USB port on a PC and configured using the free software, or for some standard ranges, through DIP switches on the rear of the meter. The meters are housed in a compact DIN72 enclosure and are sealed to a protection rating of IP65. All meters are available with either black digits/markings on a coloured background (positive display) or coloured digits/markings on a black background (negative display) and have an option of two independent outputs, programmable as setpoints or analogue outputs.
