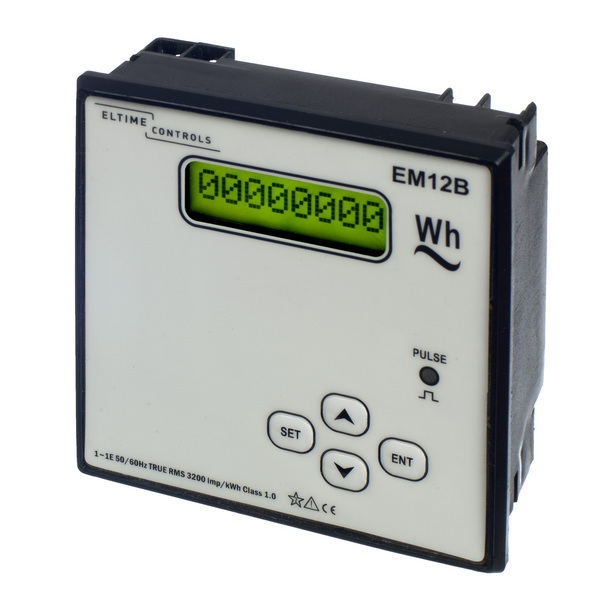

EM DIN Square LCD kWh Meters
Product Features
- Active energy (kWh) measurement
- Standard DIN square size with LCD Display
- True RMS measurement
- Single phase and 3 phase versions
- Programmable CT and PT ratios
- Accuracy class 1 (1%)
- Self powered
- Phase reversal and phase loss indication
- Password protected, Resettable and Tamperproof
- Pulsed output
Eltime Energy Meters are suitable for the monitoring of active energy (kWh) in all types of sub-metering applications. Models are available for single phase and three phase unbalanced loads. These panel mounting energy meters are accurate to class 1 to IEC1036 and have user programmable CT and PT ratios through push buttons on the front of the meter. The meters are housed in a compact DIN96 enclosure measuring only 45mm in depth. All meters have an LCD display counter and are self powered, eliminating the need for any auxiliary power supply. All meters are available with an isolated open collector pulsed output for input to data loggers, PLCs, building management systems or computers.
Key Terms: EM12B - EM33U - EM34U - Energy - kWh Meter - kWh - Pulsed Output
