Power Factor Meters
Product Features
- Available to measure power factor (cosØ)
- DIN square 48mm, 72mm or 96mm sizes

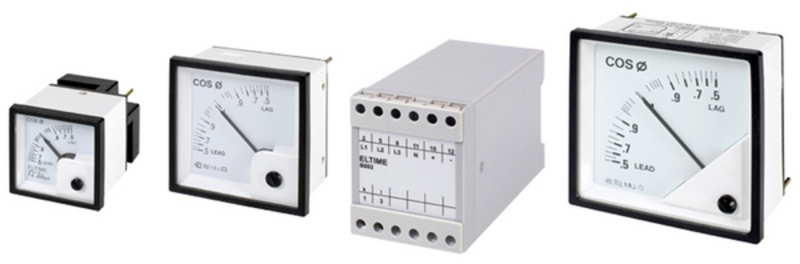

Power factor meters are suitable for the measurement of power factor (cosØ). DIN96 meters are self contained whilst all smaller units are connected to a separate converter unit and calibrated as a complete unit to individual requirements. The converter unit has finger-proof terminal covers and can be remotely DIN rail mounted. All meters have a jewel and pivot movement which ensures reliability and accuracy. The power factor meters are available in shortscale (90°) only. Scales are non-linear, bi-directional and are calibrated from 0.5 lead to 0.5 lag.
Key Terms: FE48PF1 - FE72PF1 - FE96PF1 - FE48PF3 - FE72PF3 - FE96PF3 - Panel Meter - Power Factor - cos[phi] - DIN Meter - Meter
