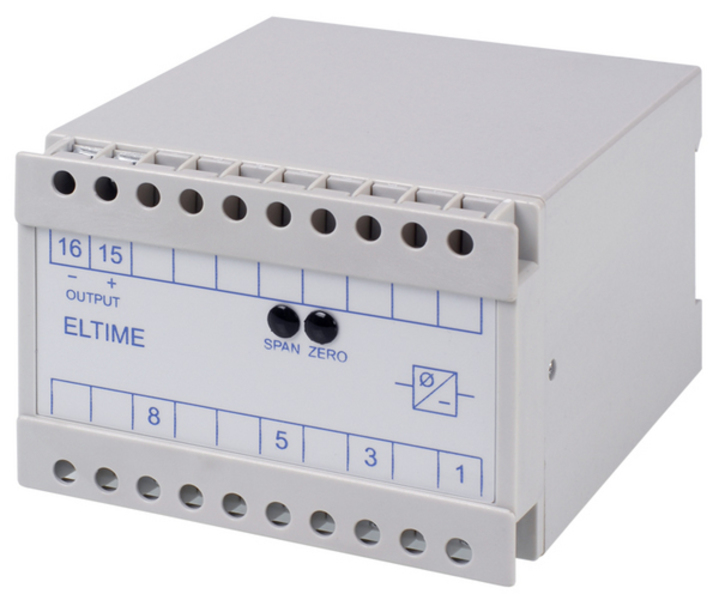

Phase Angle Transducers

Phase Angle Transducers

Product Features

  • Isolated DC mA or DC voltage output
  • Accuracy class 0.25
  • Adjustable 'span' and 'zero'
  • DIN rail mounting enclosure
  • 4kV rms 50Hz 1 minute isolation
  • Screw type terminals
  • Fingerproof terminal cover included

Phase angle transducers measure the phase relationship between a current and a voltage or two voltages. The transducer converts the phase angle value to either a DC mA or DC voltage output which is directly proportional to the input signal. These can be used for monitoring and optimising power factor correction systems. All phase angle transducers are available self powered or powered from a large choice of AC or DC auxiliary power options. The 4kV isolated output signals can then be fed to analogue meters, digital meters, PLC's or building management systems.


Key Terms: EA12B - EA33B - EA12V - Phase Angle Transducer - Voltage Synchronisation
