EL96GT DIN Square kWh Meters
Product Features
- Active energy (kWh) measurement
- Single phase, 3 phase and DC versions
- DIN 96mm square enclosure
- Accuracy class 1 (1%)
- Non-resettable
- Pulsed output option

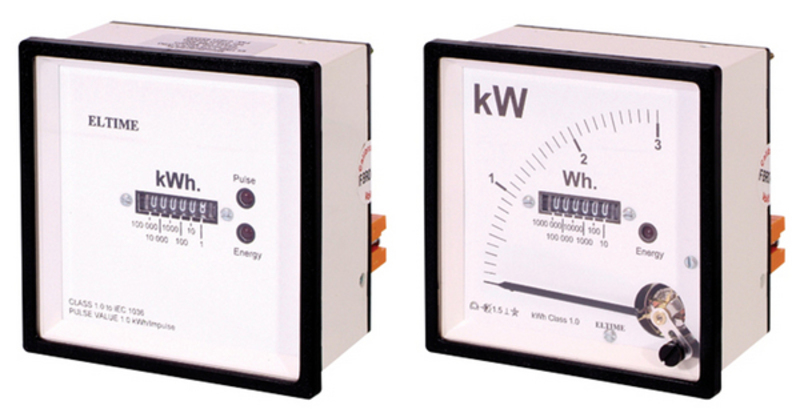

Kilowatt hour meters are suitable for the monitoring of active energy (kWh) in all types of sub-metering applications. Models are available for single phase and three phase, balanced and unbalanced loads, as well as DC systems. The panel mounting kWh meters are accurate to class 1 to IEC1036 and AC models have a user selectable CT ratio through a rotary switch accessible from a removable cover on the meter. The meters are housed in a compact DIN96 enclosure measuring only 61mm in depth and are available combined with an analogue instantaneous reading wattmeter (EL96GTW) if required. All meters have an electromechanical counter eliminating the need for any auxiliary power supply on the AC models. All meters are available with an optional voltage free pulsed output for input to data loggers, PLC's, building management systems or computers.
