AC Ammeters, Voltmeters & Frequency Meters

AC Ammeters, Voltmeters & Frequency Meters

Product Features

  • 3½ digit red LED display
  • DIN 96x48mm or 48x24mm sizes
  • User adjustable scale and decimal point
  • Easy to wire screw type terminals

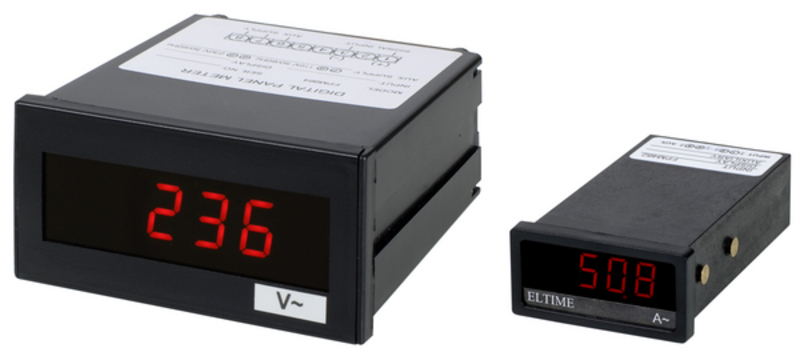

AC digital ammeters and voltmeters are available in two DIN sizes, 48x24mm and 96x48mm, and a digital frequency meter is available in the larger size, all featuring a 3½ digit red LED display. The meters panel mount and offer a wide choice of input and display options making them suitable for a large range of industrial applications. All AC digital panel meters can be powered by a large selection of self contained AC or DC auxiliary power supplies, which all offer isolation between the measured input signal and auxiliary supply voltage. All AC digital panel meters are delivered fully calibrated, however adjustments to zero and span points can be made (see calibration data sheets). Optional terminal protection covers are also available.


Key Terms: FPM964ACA - FPM964ACV - FPM964 - FPM482ACA - FPM482ACV - FPM482 - Digital - AC - Ammeter - Voltmeter - Frequency - LED - 4-20mA
