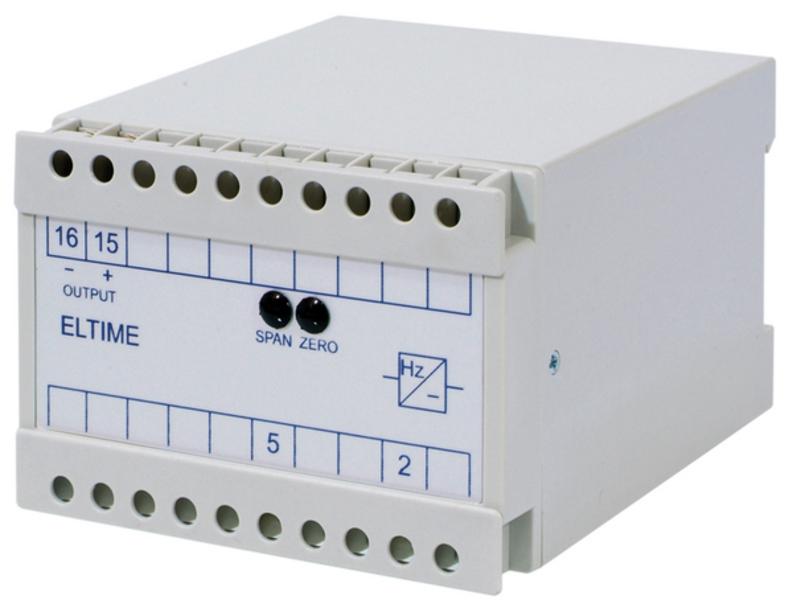

Frequency Transducers

Frequency Transducers

Product Features

  • Isolated DC mA or DC voltage output
  • Accuracy ±0.1% of centre frequency
  • Adjustable 'span' and 'zero'
  • DIN rail mounting enclosure
  • 4kV rms 50Hz 1 minute isolation
  • Screw type terminals
  • Fingerproof terminal cover included

Frequency transducers measure frequency either directly or through a voltage transformer. The transducer converts the AC frequency signal to either a DC mA or DC voltage output which is directly proportional to the input signal value. The output is directly proportional to the frequency deviation around a specified nominal frequency. All frequency transducers are self powered. The 4kV isolated output signals can then be fed to remote counters, data loggers, PLC's or building management systems.


Datasheet

Key Terms: EF12U - EF12B - Frequency Transducer - Frequency - Hz
