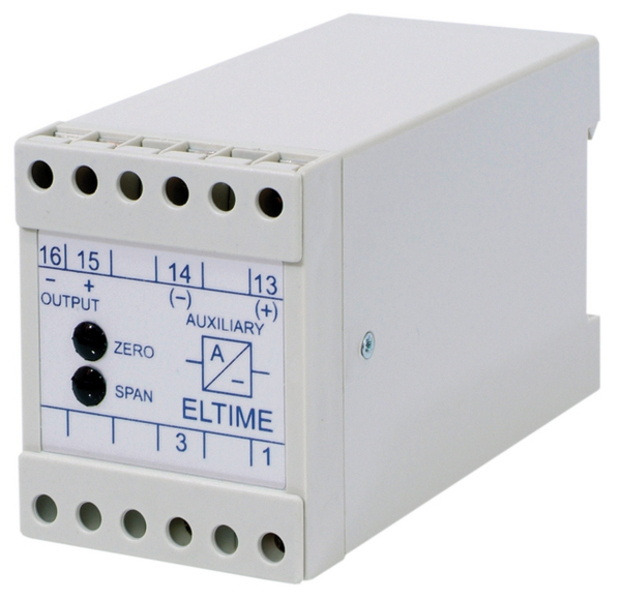

AC Current Transducers

AC Current Transducers

Product Features

  • Isolated DC mA or DC voltage output
  • Accuracy class 0.25
  • Adjustable 'span' and 'zero'
  • DIN rail mounting enclosure
  • 4kV rms 50Hz 1 minute isolation
  • Screw type terminals
  • Fingerproof terminal cover included

AC current transducers measure AC current either directly or through a current transformer. The transducer converts the AC current signal to either a DC mA or DC voltage output which is directly proportional to the input signal value. The ECCC and ECCP are average sensing rms calibrated while the ECCR is a true rms sensing, rms calibrated transducer typically used for measuring distorted waveforms. The ECCB measures the magnitude and direction of the input current for use when monitoring import/export of branch currents in supply loops. The ECCC transducers are self powered whilst all other AC current transducers are powered from a large choice of AC or DC auxiliary power options. The 4kV isolated output signals can then be fed to analogue meters, digital meters, PLC's or building management systems.


Datasheet

Key Terms: ECCC - ECCP - ECCR - ECCB - Transducer - Current Transducer
