Quartz Analogue Timeswitches
Product Features
- 24 hour or 7 day versions
- Quartz accuracy
- Panel, DIN rail and surface mounting
- 100 hour NiMH battery reserve
- Standard DIN square size
- Screw type terminals

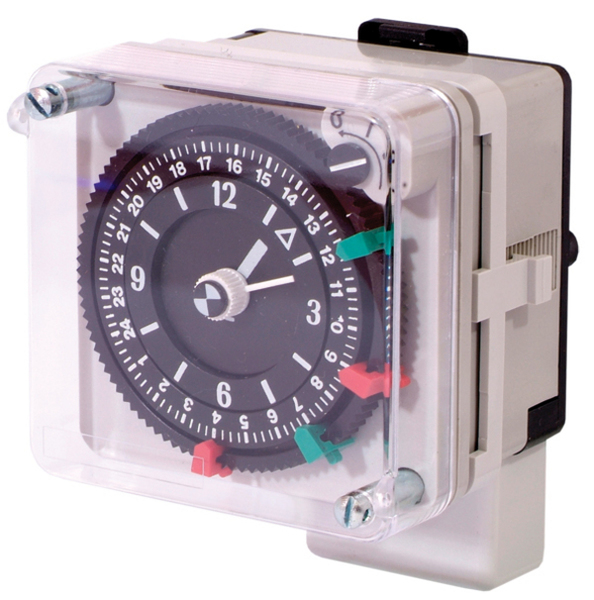

Quartz analogue timeswitches offer accuracy and flexibility making them suitable for a large range of industrial control applications. The timeswitches are powered from a large choice of AC or DC auxiliary power options and have a voltage free changeover relay contact. The universal mounting enclosure allows the SPHQ to be panel, DIN rail or surface mounted. In the event of a mains shut down or power failure the SPHQ will continue to operate, accurate to the second, due to a 100 hour battery power reserve. The face of the timeswitch clearly indicates the time and a rotating disc at the centre indicates operation. There is a manual override facility on both SPHQ models. Extra pairs of tappets (pegs) are available for both 24 hour and 7 day models.
Key Terms: SPHQ - Quartz - Timeswitch - Analogue - 24 Hour - 7 Day
Made In U.K.
