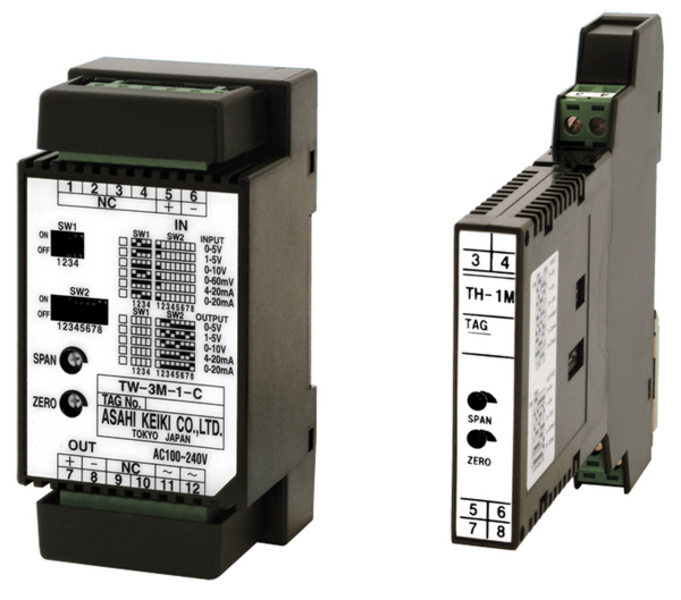

Analogue Signal Conditioners

Analogue Signal Conditioners

Product Features

  • Convert and isolate process signals
  • User selectable input and output
  • Linearity TH-5M 0.25% f.s., TW-3M 0.1% f.s.
  • Adjustable 'span' and 'zero'
  • DIN rail mounting enclosure
  • Screw type terminals
  • Fingerproof terminal cover included

Analogue signal conditioners isolate and convert DC voltage or current signals. The signal conditioner converts the DC voltage or DC mA signal to either a DC mA or DC voltage output which is directly proportional to the input signal value. The user can select the input range and output range through the DIP switches on the front of the isolator. These signal conditioners offer isolation between the DC input signal and the DC output which can be used to prevent earth loops. The 1.5kV isolated output signals can then be fed to analogue meters, digital meters or PLC's.


Key Terms: TH-5M - TW-3M - Analogue - Signal Conditioner - Converter
