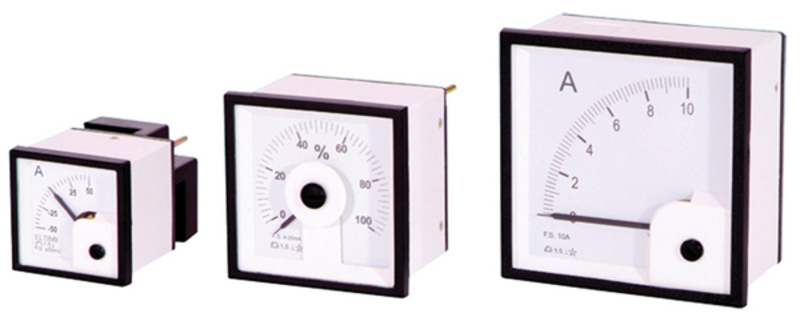

Moving Coil Meters

Moving Coil Meters

Product Features

  • Available to measure A or V
  • DIN square 48mm, 72mm or 96mm sizes
  • Interchangeable scaleplates
  • 90° shortscale or 240° longscale versions
  • Customer special scaleplates available

Moving coil meters are suitable for measurement of d.c. current or voltage. All meters have a jewel and pivot movement which ensures reliability and accuracy. The moving coil meters are available in shortscale (90°) versions or longscale (240°) versions (DIN72 & DIN96 only). All meters have interchangeable scaleplates. Scales are linear and are calibrated from zero to full scale. Scaleplates are available in any process unit including A, V, ºC, bar, rpm, kW and %, so meters can be driven from a transducer output.

Datasheet

Key Terms: FE48MCA - FE72MCA - FE96MCA - FE72LSA - FE96LSA - FE48MCV - FE72MCV - FE96MCV - FE72LSV - FE96LSV - Moving Coil - Panel Meter - Ammeter - Voltmeter - DIN Meter - Analogue - Longscale
