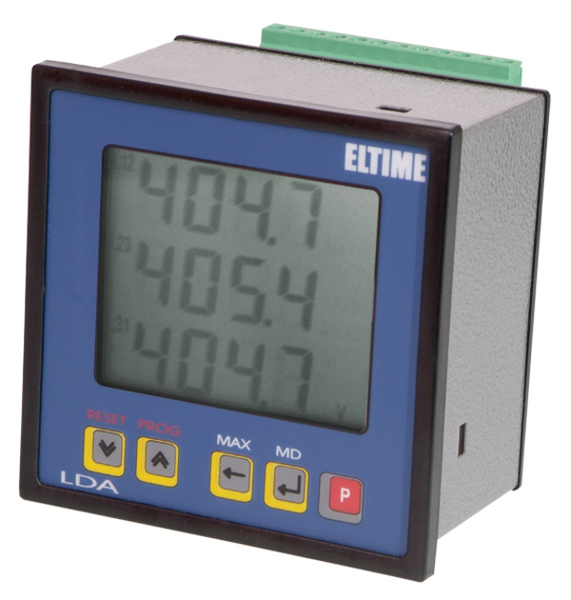

LDA-C 3 Phase System Monitor

LDA-C 3 Phase System Monitor

Product Features

  • Measures over 30 electrical parameters
  • 3 phase unbalanced loads
  • Volts, Amps, Watts, Vars, Hz, cosØ, kWh
  • Programmable CT/VT ratios
  • DIN96 metal enclosure with LCD screen
  • 2 pulsed outputs / alarm outputs
  • RS485 serial port

The LDA-C multifunction monitor is suitable for the measurement of over 30 parameters of a three phase electrical system in one auxiliary powered instrument. The large LCD screen and compact DIN96 enclosure ensures suitability for a wide range of industrial applications. The LDA-C can be programmed through the front built-in keypad buttons or remotely via the serial port. The RS485 serial port uses the MODBUS RTU communication protocol and up to 32 units can be connected in one network. Two voltage free output relays can be configured as either pulsed outputs for energy or alarm contacts for any parameter. Optional meter reading software and full data analysis software are available.

Datasheet Manual

Key Terms: LDA-C - 3 Phase - System Monitor - Network Analyser - RS485 - LCD - Multifunction
